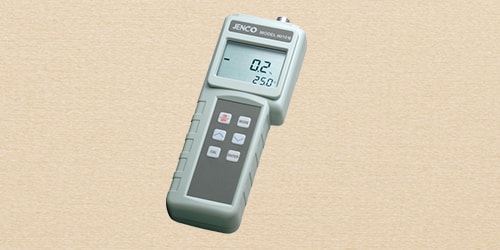

Portable DO Analyser
Models 9010M and 9020M are dissolved oxygen meters for taking reliable DO readings out in the field. Like the other meters in this popular series, this meter is RoHS compliant and can store up to 50 sets of readings. Model 9010M takes DO readings via a polarographic probe while model 9020M takes DO readings via a galvanic probe.
- Simultaneous displays of DO or DO% saturation with temperature measurements
- 50 data sets Convenient one point calibration
- Automatic temperature compensated (ATC) dissolved oxygen readings
- User selectable salinity and pressure compensated dissolved oxygen readings
- Polarographic (9010M) or galvanic (9020M) Automatic shutoff function (45 minutes of nonuse)
- Battery life over 500 hours
- IP65 waterproof housing
- Low battery indicator
- ROHS, CE compliant
| DO Range (ppm) | 0.00 to 20.00 ppm |
| DO Resolution (ppm) | 0.01 ppm |
| DO Accuracy (ppm) | ±0.5% F.S. |
| DO% saturation Range | 0.0 to 200.0% |
| DO% saturation Resolution | 0.1% |
| DO% saturation Accuracy | ±0.5% F.S. |
| Temperature Range | -6.0 to 46.0 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.3 °C ± 1 digit |
| Pressure Compensation | 600 to 1100m Bar |
| Salinity Compensation | From 0.0 to 40.0 ppt |
| Electrode Type | Polarographic (9010M) or Galyanic (9020M) |
| ATC | Thermistor ,10K ohms at 25 °C |
| Calibration Backup | Yes |
| Automatic Temperature Compensation | Yes |
| Power | 9 Volt battery |
| Operating Ambient Conditions | From 0 to 50 °C ,at 90% RH |
| Weight | 260 grams (Including batteries) |
| Dimensions | 70 x 198 x 37 mm |
